Multiscene 175A Anderson Power Pole Connector , Practical Forklift Battery Terminals
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Hexie |
| Certification | CE,ROHS |
| Model Number | 175A Anderson Connector |
| Minimum Order Quantity | 100pieces |
| Price | negotiated |
| Packaging Details | Packaging with OPP bag |
| Delivery Time | 7-10 working days after receive payment |
| Payment Terms | T/T, PayPal |
| Supply Ability | 10000 pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Anderson Powerpole Connector 120A 600V Gray Red SB120 Plug Connector For Solar Panels C | Heavy Duty Contact Amp Rating | 175A |
|---|---|---|---|
| Heavy Duty Contact Voltage | 600V | Color | Gray/blue/yellow/black/red |
| Application | Automotive | Standard Tempsize | -20°C To 105°C (-4°C To 221°C) |
| Contact Material | Copper Plating Silver | Material | PC ( Fire-retardant Materials ) |
| High Light | Multiscene Anderson Power Pole Connector,175A Anderson Power Pole Connector,Practical Forklift Battery Terminals |
||
Product Description
Anderson Powerpole Connectors 175A Disconnect 175A Battery Terminal Connectors
Product Description
Product Details
.......................................

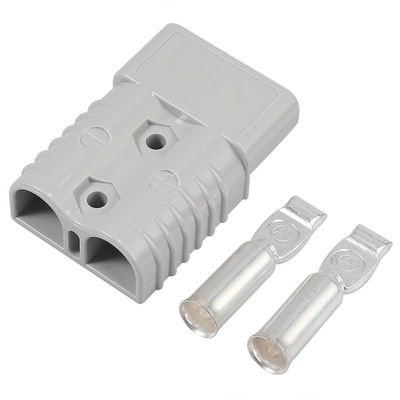

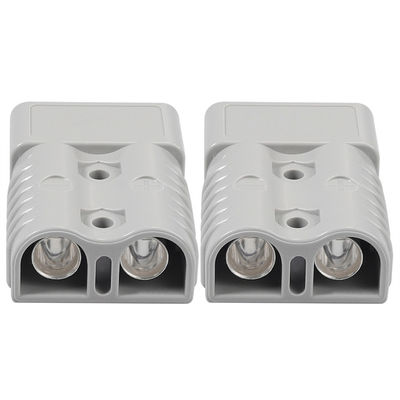

Name: 175Amp Anderson compatible 2 pole Power Connector Plug Grey w/Terminals for #1/0 AWG Wire
Current: 175 Amps
Voltage: 600 Volts (Max)
Operating Temperature: -20 to 105 degree Celsius
Housing Gender: Genderless (housing can all connect to each other as long as they are same size and color)
Housing color: Grey
Housing Material: Polycarbonate
Housing Dimension: 55mm*25*79mm
Termination Type: Terminals can be either crimped or soldered to the cables
Contact/Terminal Material: Silver Plated Copper
Contact Retention Spring Material: Copper Plating Silver
Comply with major world wide specifications.
Highly reliable design, AC/DC applications
Impact Resistant Polycarbonate and Connectors are Silver plated Solid Copper Terminals
Cable Size:
Diameter up to 16m²(6AWG)；25mm²(4AWG)；35mm²(2AWG)；50mm²(1 / 0AWG)
Low detente for insertion/withdrawal force applications.
All contacts can be either crimped or soldered.
The product is suitable for power supply, electric vehicle, material handling equipment, rechargeable battery application, power distribution equipment, industrial equipment.
Comes complete with housing and terminals
- Replacement Plug-In style Battery Booster Cable Ends
- Polarity specific - simply rotate 180° with identical part number for mate
Specifications
- Color: Red Black Grey Blue Yellow
- Gauge: 12-10AWG 8AWG 6AWG
- Voltage Amp: 120A 600V
- Insulation Material:PC
- Contact Material:Silver-plated Copper
- Interface Type:AC/DC
- Flame retardant grade:94-V0
- AWG Contact Resistance:200 Micro-Ohms
- Insulation Withstanding Voltage:2200V AC/DC
Product Description
Product Details
.......................................
Name: 175Amp Anderson compatible 2 pole Power Connector Plug Grey w/Terminals for #1/0 AWG Wire
Current: 175 Amps
Voltage: 600 Volts (Max)
Operating Temperature: -20 to 105 degree Celsius
Housing Gender: Genderless (housing can all connect to each other as long as they are same size and color)
Housing color: Grey
Housing Material: Polycarbonate
Housing Dimension: 53.1*25.4*79.5mm/2.09*3.13*1inches
Suitable for Cable size: #1/0 AWG
Termination Type: Terminals can be either crimped or soldered to the cables
Contact/Terminal Material: Silver Plated Copper
Contact Retention Spring Material: Stainless Steel
