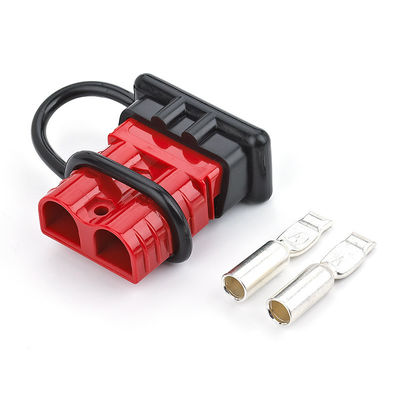

Dual Pole Anderson Powerpole Connectors 50A 600V For Forklift Battery Terminal
| Place of Origin | China |
|---|---|
| Brand Name | Hexie |
| Certification | RoHS SGS UL IATF16949 ISO9001 |
| Model Number | 50A 600V Anderson Battery Connector |
| Minimum Order Quantity | 500Pcs |
| Price | USD0.15-8.85 per Piece |
| Packaging Details | PE bag with Carton |
| Delivery Time | 7-10 work days |
| Payment Terms | T/T, Western Union, MoneyGram,PayPal |
| Supply Ability | 50000Pcs per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 50A 600V Anderson Type Quick Battery Connector Dual Pole High Current | Application | Automobile Electric Forklift Solar Power Battery |
|---|---|---|---|
| Certificate | RoHS IATF16949 ISO9001 TUV UL | Rated Current | 50A DC |
| Rated Voltage | 600V DC | Contact Barrel Wire Size | 6-12AWG 13.3-3.3mm2 |
| Maximum Wire Insulation Diameter[inches | 7 | AVG Contact Resistance(micro-ohms) | <200 |
| Insulation Withstanding Test Voltage (Volts AC/DC) | 2200V | Contact Retention Force (lbf) | 50lbf |
| Lammability Rating Of Housing Material | UL 94-V0 | Contact Material | Silver Plated Copper |
| High Light | Dual Pole Anderson Powerpole Connectors,600V Anderson Powerpole Connectors,50A Forklift Battery Terminal Connectors |
||
Product Description
This High Current power connector is a brand from China, “A” and “B” series identify the single pole and dual pole products, the connectors provide cost-effective quality and reliability, design flexibility and safety, equal the famous brands APP, REMA, TYCO,AMP,SMH and KSJ.
The power connectors are widely application in Military, Avionics, Boat, Yacht, Bus, Vehicles, Golf Cart , Forklift, e-sweeper, all kind of automotive, posts and telecommunications, communications, electricity, solar system, coal, aerospace, defense, surveillance systems, railway signals, medical equipment, instruments and meters, EV Charging system, AGV, IoT, Robot and other automation fields.
1. Features
●Genderless Housings
Quick and easy assembly
●Low Resistance Connection
Silver or tin plated copper contacts inside housings provide tightly connection
●Support Hot Plug
Contacts design a sacrificial tip that allows high current circuit interrupt
●Color identified housings
Prevent accidental mating at different voltage levels
●Self-Securing Design
Stainless steel springs create a robust force between the contacts to fix the connector in the mated position
●Auxiliary or Ground Positions
Use for signal transmission or promote safety of contacts
2. Specifications
|
Connector Model |
|
SB50 |
|
Rated Current |
A |
50 |
|
Rated Voltage |
V |
600 |
|
Contact Barrel Wire Size |
AWG/ mm² |
6/10/12AWG (13.3/5.3/3.3mm²) |
|
Average Contact Resistance |
mΩ |
0.05 |
|
Insulation Withstanding Test Voltage |
Vdc |
2200 |
|
Insulation Resistance |
MΩ |
>500 |
|
No load Contact/Disconnect Cycles |
times |
>10,000 |
|
Under Load (Hot Plug 250 cycles@120V |
A |
50 |
|
Avg. Connect/Disconnect Force |
N |
53 |
|
Operating Temperature Range |
C |
-20°to 125° |
|
Size |
mm |
48.1*36.4*16 |
|
Flammability Rating of Housing Material |
|
UL94 V-0 |
|
Contact material |
|
Silver plated copper |
