EMI Shielded Energy Storage Connector 1000V 300A 350A Waterproof

Place of Origin China
Brand Name Hexie
Certification RoHS SGS UL IATF16949 ISO9001
Model Number 350A Energy Storage Waterproof Connector
Minimum Order Quantity 100Pcs
Price USD0.15-8.85 per Piece
Packaging Details PE bag with Carton
Delivery Time 7-10 work days
Payment Terms T/T, Western Union, MoneyGram,PayPal
Supply Ability 50000Pcs per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 350A Energy Storage Waterproof Connector Application Photovoltaic Power Station New Energy Storage Battery Electric Vehicles
Certificate RoHS IATF16949 ISO9001 TUV UL Rated Current 300A 350A DC
Rated Voltage 1500V DC Insulation Resistance 5000 MΩ Min (Dry) 200 MΩ Min (RH 95%)
Test Voltage 4000V AC Minimum Mating Cycles 500 Times
Wire Gauge Range 70mm2~95mm2 Protection Grade IP54B
Operation Temperature -40℃ ~+125 ℃,TUV -40℃ ~+85 ℃
High Light

Shielded Energy Storage Connector

,

300A Energy Storage Connector

,

350A EV Charging Connectors

Leave a Message
Product Description

300A 350A 1000V 1500V High Current New Energy Solar Battery Storage Station EMI Shielded Connector 12.0 Pin Touch Proof Silver Glided Copper





Part No.: HX-FSPC220180C







Description:

This product is energy storage plastic connector, which is applicable for high-voltage, high current connection between components such as energy stoarge cabinet, energy storage station, mobile energy storage vehicles, photovoltaic power station, etc.



Features:

  • Touch Proof
  • Compact Robust Design ,Various Termination Options
  • EMI Shielded
  • Quick Lock and Press-to- Release Design
  • Competitive price from factory with Small MOQ to help you reduce inventories and avoid market risks;
  • Accept OEM & ODM for your customized requirement;



Application:

  • EV Battery Packs
  • Electrical Motorcycle
  • Electrical Scooters
  • Ebikes
  • New Energy Storage Battery Packs



Parameters:

Electrical Performance
Rated Current 300A/350A
Rated Voltage UL DC 1000V, TUV 1500V DC
Insulation Resistance

5000 mΩ Min (Dry)

200 mΩ Min (RH 95%)

Test Voltage 4000V AC
Mechanical Performance
Minimum Mating Cycles 500 times
Wire Range 70mm2~95mm2
Environment Performance
Protection Grade IP67B
Operation Temperature -40 ℃ ~+125 ℃
Salt Spray Resistance 144H (Mating State)
Reference Standard
USCAR-2
USCAR-37





Product Pictures:

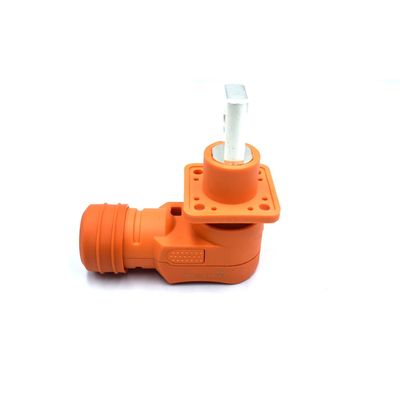

EMI Shielded Energy Storage Connector 1000V 300A 350A Waterproof 0

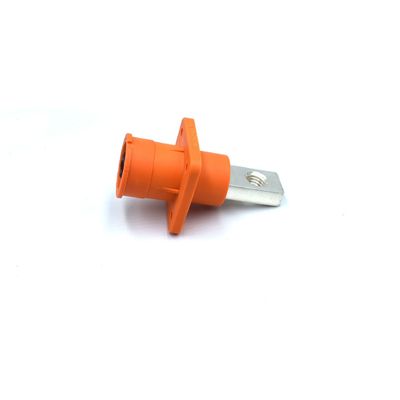

EMI Shielded Energy Storage Connector 1000V 300A 350A Waterproof 1



EMI Shielded Quick Lock 1000V 350A Waterproof Connector For PV Photovoltaic Power Station Application 0EMI Shielded Quick Lock 1000V 350A Waterproof Connector For PV Photovoltaic Power Station Application 1





Drawings:

Socket

EMI Shielded Quick Lock 1000V 350A Waterproof Connector For PV Photovoltaic Power Station Application 2



Plug

EMI Shielded Quick Lock 1000V 350A Waterproof Connector For PV Photovoltaic Power Station Application 3
