Silicone Rubber Multimeter Test Leads Multicolor 32A With Banana Plug

Place of Origin China
Brand Name Hexie
Certification RoHS SGS UL IATF16949 ISO9001
Model Number 4mm Safety Banana Plug Test Lead
Minimum Order Quantity 1000Pcs
Price USD0.35-1.85 per Piece
Packaging Details PE bag with Carton
Delivery Time 7-15 work days
Payment Terms T/T, Western Union, MoneyGram,PayPal
Supply Ability 50000Pcs per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name High Voltage Safety Type 4mm Stackable Banana Plug Test Lead Soft Silicone Test Cable For Multimeter Application Multimeter Electronics
Certificate RoHS IATF16949 ISO9001 TUV UL Connector 4mm Safety Stackable Banana Plug Male
Wire Gauge 14AWG Or 16AWG Silicone Cable Cable Length 0.5m/1m/2m/3m/4m/5m/6m...any Custom Lengths
Conductor Material Tin-plated Copper Insulator Material Silicone Rubber
Rated Current 16-30A Rated Voltage 60-600V
Contact Resistance ≤ 10 MΩ Color Red Black Yellow Green Blue
Max. Current 32A
High Light

Silicone Rubber Multimeter Test Leads

,

Multicolor Multimeter Test Leads

,

32A Banana Plug Leads

Leave a Message
Product Description
High Voltage Safety Type 4mm Stackable Banana Plug Test Lead Soft Silicone Test Cable for Multimeter

Product Description



Measuring lead,at either end 4 mm diameter plug with caged spring and 4 mm

diameter socket for tower construction. Nickel-plated copper beryllium contact

spring. Highly flexible, double insulated stranded lead, grip and lead shatter-proof.

Built in colour indicator for easy identifcation of insulation damages.

Specifications



Connector:4 mm Stackable banana plug

Cable length:50cm 100cm 200cm or customization

Conductor size:1.309mm²(16AWG) or 2.624mm²(13AWG)

Cable material:PVC or Silicone

Cable color:Red Black Blue

Housing Color:Red Black Blue

Pin dimensions:4 mm

Cable specification:highly flexible lead

Wire stranding: 252x0.08 or 500x0.08mm

Rated voltage: DC60V-600V

Testing voltage:2000V

Rated current:16A-30A

Contact resistance:22mOhm

Contact material contact pin: brass, contact spring: copper beryllium

Contact surface material nickel-plated

Housing material:PA ABS etc.

Environmental conditions

Temperature range -15 °C to +70 °C

Inflammability class

Cable 94 HB

Housing 94 V-2



Product Name High Voltage Safety Type 4mm Stackable Banana Plug Test Leads
Brand HXE
Model No. Test Lead-012
Cable Type 4mm Banana Plug Test Leads
Connector 1 4mm Stackable Banana Plug
Connector 2 4mm Stackable Banana Plug
Connector plating Gold Plated or Nickel Plated
Gender Male to Male
Wire 13AWG/14AWG/16AWG Silicone Cable
Conductor Bare Copper or Tinned Copper
Pin layout Standard
Jacket Silicone
Sample Available
MOQ 1000 pcs
Package PE bags
Warranty 12 months
OEM Support





Detailed Images

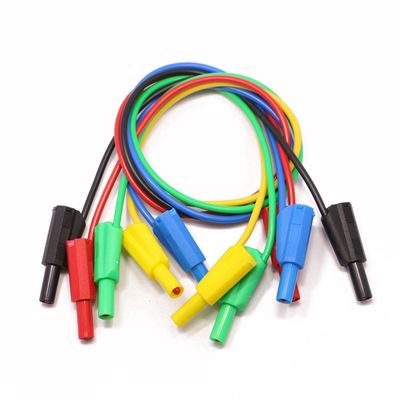

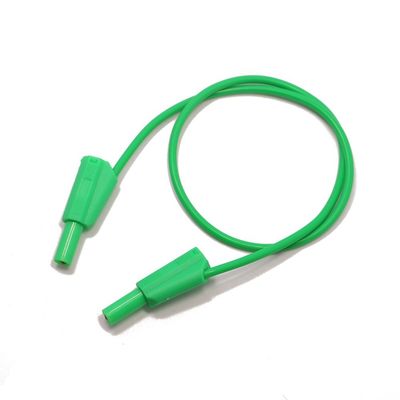

Silicone Rubber Multimeter Test Leads Multicolor 32A With Banana Plug 0Silicone Rubber Multimeter Test Leads Multicolor 32A With Banana Plug 1Silicone Rubber Multimeter Test Leads Multicolor 32A With Banana Plug 2Silicone Rubber Multimeter Test Leads Multicolor 32A With Banana Plug 3Silicone Rubber Multimeter Test Leads Multicolor 32A With Banana Plug 4Silicone Rubber Multimeter Test Leads Multicolor 32A With Banana Plug 5Silicone Rubber Multimeter Test Leads Multicolor 32A With Banana Plug 6

Technology character

High Voltage Safety Type 4mm Stackable Banana Plug Test Lead Soft Silicone Test Cable for Multimeter
