125V 20A Copper Electronics Wire Harne Power Cords L5-20P-L5-20R
| Place of Origin | China |
|---|---|
| Brand Name | Hexie |
| Certification | RoHS SGS UL IATF16949 ISO9001 |
| Model Number | NEMA L5-20P to L5-20R Power Cords |
| Minimum Order Quantity | 300Pcs |
| Price | USD0.15-15.75 per Piece |
| Packaging Details | PE bag with Carton |
| Delivery Time | 7-15 work days |
| Payment Terms | T/T, Western Union, MoneyGram,PayPal |
| Supply Ability | 50000Pcs per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | NEMA Power Cords NEMA L5-20P To L5-20R 125V 20A Twist Locking Extension Cords Generator Extension Cord | Application | Industrial, Generator Telecommunication Etc. |
|---|---|---|---|
| Certificate | RoHS IATF16949 ISO9001 TUV UL | Standard | NEMA American Standard |
| Plug | NEMA L5-20P | Receptacle | NEMA L5-20R |
| Wire Gauge | 12AWG*3C SJT/SJTW | Conductor Material | 99.999% Pure Copper |
| Insulator Material | PVC | Cable Length | 3m 5m 10m Or Custom Cable Length |
| Rated Current | 20A AC | Rated Voltage | 125V AC |
| Color | Black Orange | MOQ | 300Pcs |
| High Light | 125V Electronics Wire Harness,20A Electronics Wire Harness,Copper NEMA Power Cords |
||
Product Description

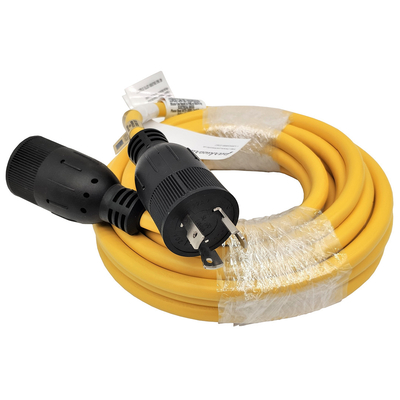

NEMA L5-20P to L5-20R Extension Cord, Locking 3-Prong, 20 AMP, 125 Volts, 2500 Watts (25FT)

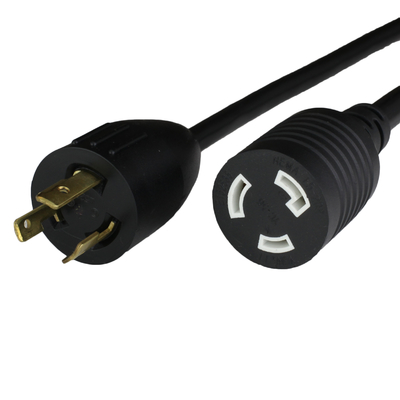

NEMA Power Cords NEMA L5-20P to L5-20R 125V 20A Twist Locking Extension Cords Generator Extension Cord
- Heavy-duty for RV, 100% copper conductor inside.
- SJTW SJT 12/3C stranded wire Extension Cord with Outdoor Jacket, support max 300 Volts and 20 amp overload.
- Molded with electroplate copper terminal in order to avoid surface oxidation effectively.
- Generator 3-prongs Twist Lock L5-20 Locking Connector, 120 Voltages. NEMA L5-20P to L5-20R, Max Rate 2500 Watt (20A,125V)
- Universal to all other Brands 3-ping L5 type 20A locking connector, Chose 25 foot, 36 foot, 50 foot for your need.

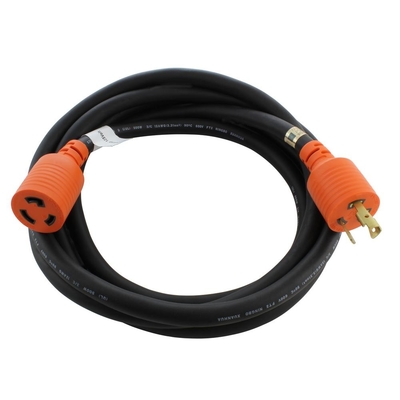

L5-20 extension cord
Connect NEMA L5-20 Locking 3 conductors L5-20R 20A outlet to plug.
Three choices of length.
We focus on producing power cord and molding NEMA plug or connector.
Most of generally use NEMA plugs and receptacles we can manufacture with PVC cable.
We have approved for all PVC wire in 62 standard, and also have approved for most of connectors in 817 standard.
Specifications
| Attribute | Specification |
|---|---|
| Current (Amps) | 20 Amps |
| Voltage (Volts) | 125 volts |
| Receptacle (Female) | NEMA L5-20R |
| Plug (Male) | NEMA L5-20P |
| Cordage/Gauge | 12AWG-3C SJT/SJTW |
| Conductor Material | 99.999% Pure Copper |
| Certifications | RoHS ISO9001 IATF16949 |
| Color | Black or Yellow |
Technology character

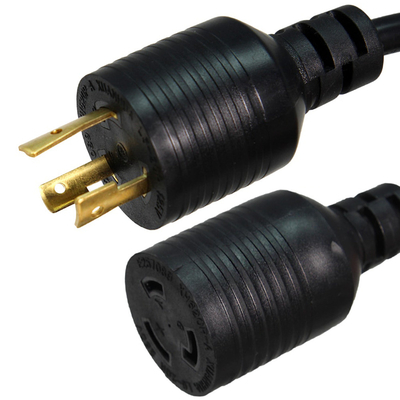

NEMA L5-20P
General Information:
The NEMA L5-20P is a 3 Wire grounded plug with a hot, neutral , and ground pin rated up to 125V and 20A. This plug can be locked into place on the matching receptacle which prevents nuisance disconnection. This plug looks nearly identical to L5-30P but is slightly smaller in pin thickness and alignment circumference. Refer to either plug, receptacle or face plate to find out your amp requirements.
What does the NEMA L5-20P Connect to?
The NEMA L5-20P connects to both the NEMA L5-20 Connector which is commonly found on power drops and extension cords, and the Outlet which is commonly found in industrial settings.
NEMA L5-20R Twist-Lock
General Information:
The NEMA L5-20R Twist-Lock Connector is rated up to 125VAC and 20A. This couples with the L5-20P and locks into place, eliminating nuisance disconnection. This makes this connector common in commercial and industrial settings where there is high traffic. This connector is found on our L5-20 Extension Cord Series, which is used to extend power from an existing L5-20R wall receptacle or connector to a certain location for convenience.
What does the NEMA L5-20R Connect to?
The NEMA L5-20R Locking Connector is designed to be twisted into a locking position with the NEMA L5-20P Locking Plug. These are commonly used with smaller devices using a standard 125V Power supply, used in locations with high traffic.
